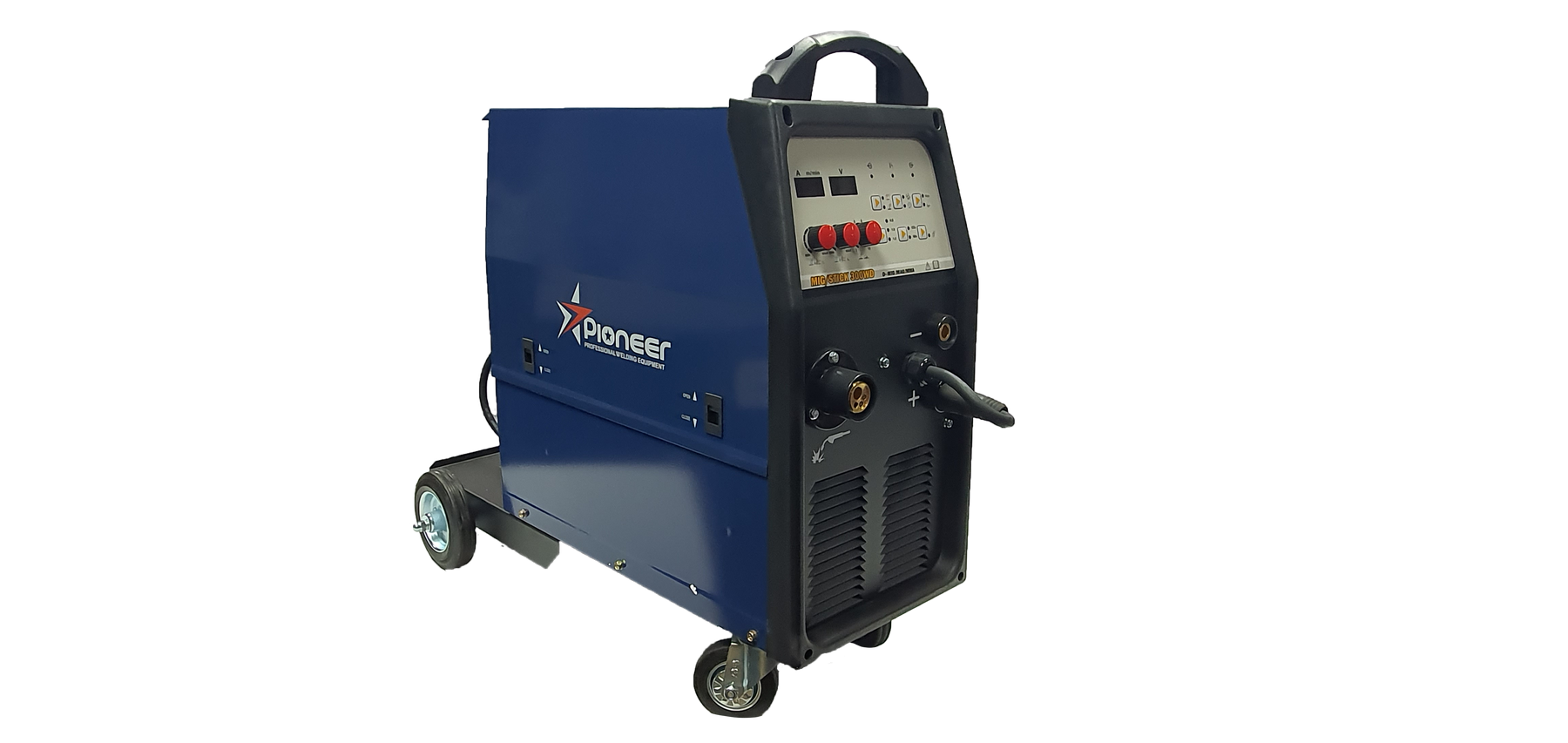

PIONEER POWER MIG 300 Compact

• Inverter Mig welder
• MMA/MIG Function
• Power Indicator
• Digital display
• 2T / 4T
• Stepless wire feed setting
• Removable MB 25 Mig Torch
• Digital Volts & Amps Display
• Available for 15kg Spool

ACCESSORIES:
• 4m MB 25 MIG TORCH with 0.8mm
contact tip;
• 3m Grounding cable 25mm2
with
Earth clamp 35-70 Dinse connector;
3mΦ8mm gase hose with connector
and 9-16 hose clamp;
• Small kits: wrench, 9-16 hose clamp,
0.8,1.0mm contact tip 1pc each; CO2 regulator

Pioneer Model: MIG 300WD

Power Supply (V/HZ): 3-ph-380V 50/60Hz

Input Current (A): 45A

Output Current (A):  MIG50-250A;
                                   MMA30-200A

OCV (V): 55V

Rated Output (% at A):  60% @ 250A

Electrode/Wire diameter (mm): 2.0-2.5mm
                                                      0.8-1.0mm
