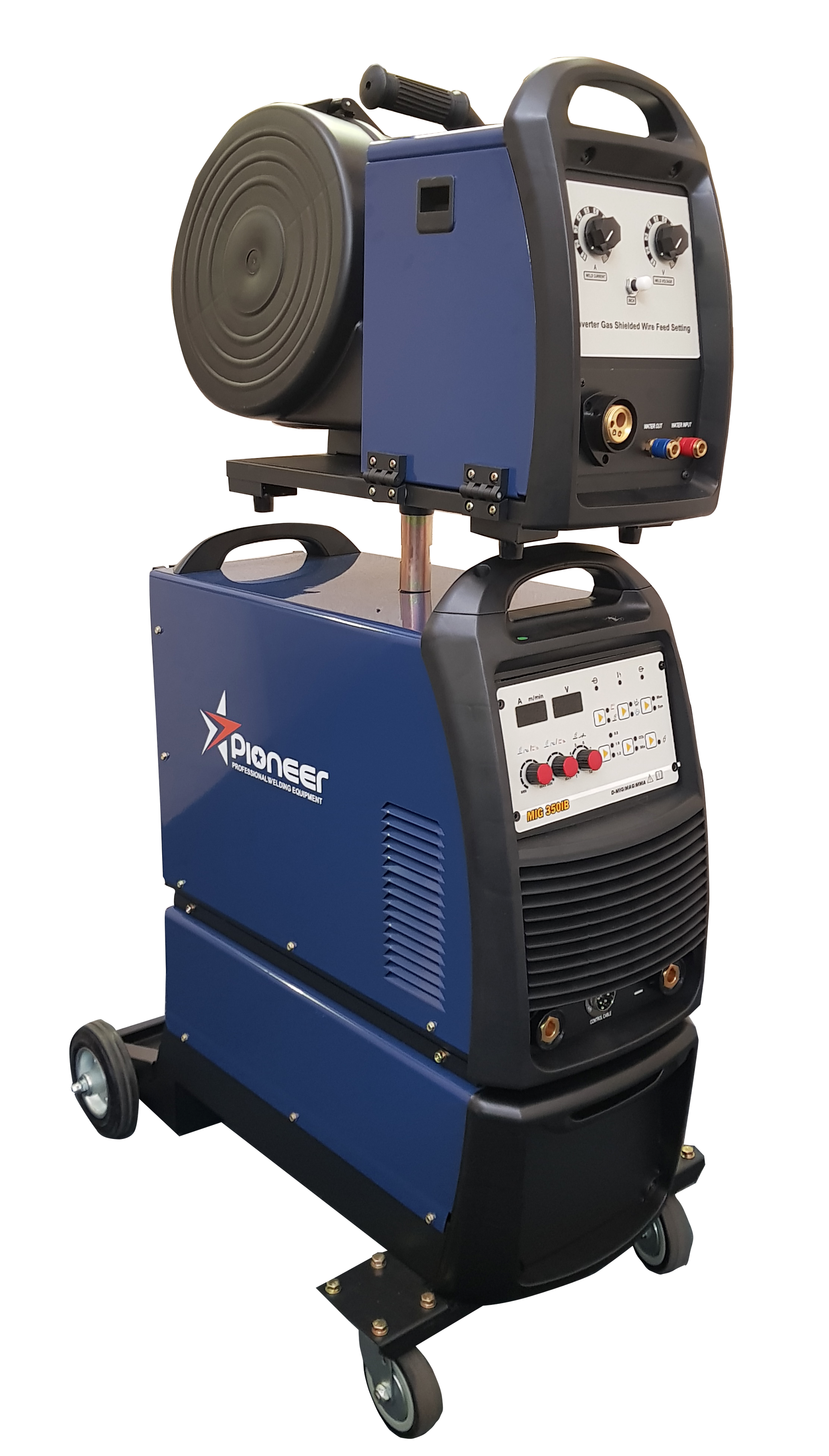

PIONEER MIG 350-IB

• IGBT Inverter three phase
   with separate wire feeder
   MIG/STICK welder
• Thermal protection
• Digital display
• Gas Check
• Burn back
• Stepless heat and wire feed
   setting
• Four Roller
• Manual Wire feeding
• Available for 15kg Spool

ACCESSORIES:
• 4m MIG torch MB36 with 1.0mm contact tip;
• 3m Grounding cable 40mm2
with Earth
clamp (70-95mm Dinse connector);
5m 6pin plug/4pin socket control cable and
connection cable;
• 7m gas hose with quick gas connector
9-16 hose clamp; 0.8,1.0,1.2mm contact tip
2pc for each, fuse 3A, 8A 1 pc each;
0.8/1.0mm roller 2pc, 1.0/1.2 roller installed
in the machine; gas meter

Pioneer Model: MIG 350IB

Power Supply (V/HZ): 3-ph-380V 50/60Hz

Input Current (A): 25.5A

Output Current (A):  40-350A

OCV (V): 60V

Rated Output (% at A):  60% @ 350A

Electrode/Wire diameter (mm): 0.8-1.2mm
